Assembleon feeder spare parts

Assembleon feeder spare parts
Here’s a detailed overview of Assembleon feeder spare parts, covering major feeder families (ITF, TTF, CL, FV, SS, ZS) and compatible machines like AX-201, AX-301/501 and Sierra-series.
Major Feeder Families & Spare Parts

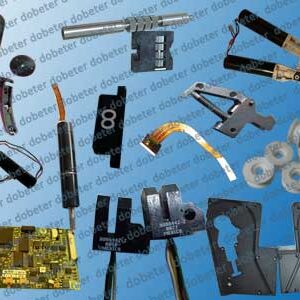

1. ITF / ITF2 Feeder Parts
Common precision parts available include:
Feeder bracket and PCB controller (e.g. part 9498 396 03799 for ITF2, spans 12–56 mm)

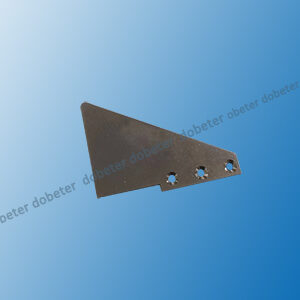

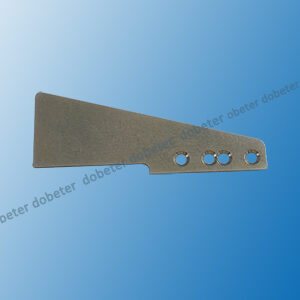

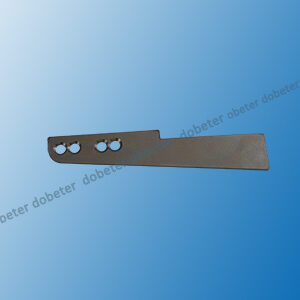

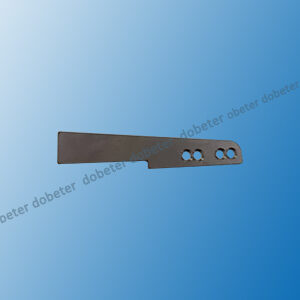

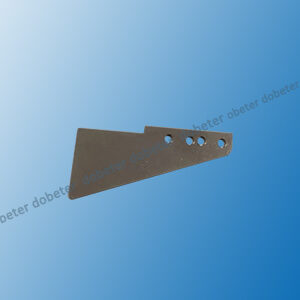

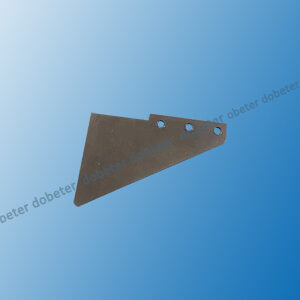

Peel-off plates for 8 mm tapes (9498 396 03389)
Clamping units (8 & 24 mm; 9498 396 01389)

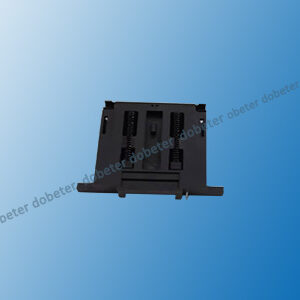

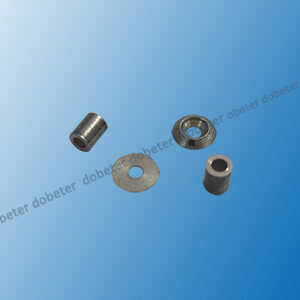

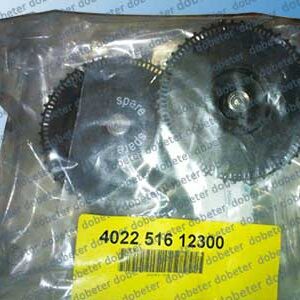

Compression springs, distance bushes, cover plate assemblies, sprocket/crown wheels, feeder motors, handle assemblies, locking knobs, main shafts, sensing boards

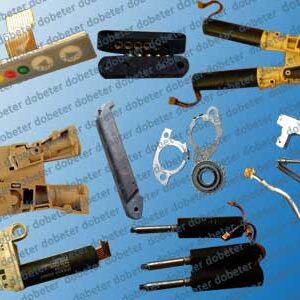

2. TTF (Twin Tape Feeder) Parts
Kits and spares for TTF feeders (8 mm through 88 mm) for models AX-301/501 available

3. CL / FV / SS / ZS Feeder Parts
Dobeter stocks feeder components across all widths (8 mm to 88 mm), including: tape guides, wheels, reels, levers, position pins, springs, screws, sprocket assemblies

4. Electrical & Pneumatic Components
Includes valves (e.g., 5322 360 10209), shaft/shaft-head assemblies, sensors, controllers, connectors, cables

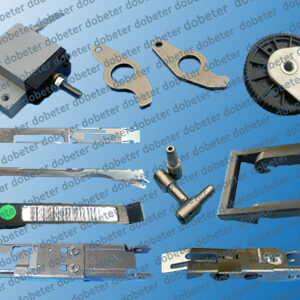

5. General Feeder Parts

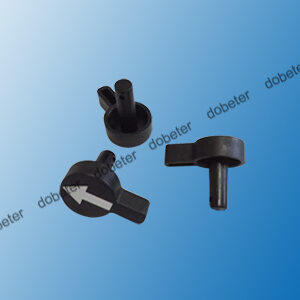

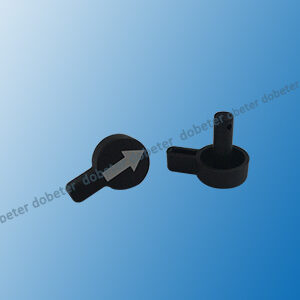

Lock/unlock knobs (5322 516 05920/5922)
Pivot press units, springs (dish/coil), crown gear (ceramic), sensor boards (5322 132 00111), IC controllers
If you’d like help sourcing specific parts, interpreting part numbers, or choosing suppliers with good pricing or shipping to your region, just let me know!

Showing 1–32 of 248 results
