Fuji Feeder Parts

Fuji produces various families of SMT feeders, Dobeter supply most Fuji Feeder Parts, the parts required depend on the specific feeder series and model. The most common Fuji feeders are for the NXT/Aimex series (intelligent electric) and the older CP series (pneumatic/mechanical).

Dobeter supply full rage of Fuji NXT/Aimex series feeder parts

The NXT and Aimex feeders are electronically driven and incorporate intelligent features, so parts include both mechanical and electronic components. Examples include:

Wear-and-tear parts:
- Gears and belts: The internal drive mechanism relies on gears (2ADLFA006000, AA5SD08) and timing belts (H45095) that can wear out over time.
- Tape guides: Ensure the tape runs smoothly. Wear or damage can cause feeding issues.
- Sprockets: Advance the component tape and must be in good condition for accurate feeding.
- Rollers: Used in the tape transport mechanism (PH01670, PJ00143).
Electronic parts:
- Feeder motor: Drives the tape advancement.

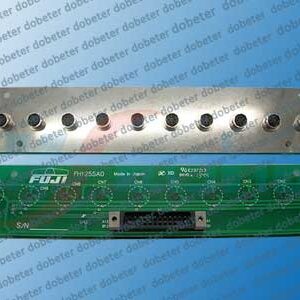

- Circuit boards: Control the feeder’s functions.
- Sensors: Detect components and the end of the tape.
Other parts:
- Reel holders: Secure the component reel in place (AA5NC03, AA7ZM02).
- Harnesses: Internal wiring.

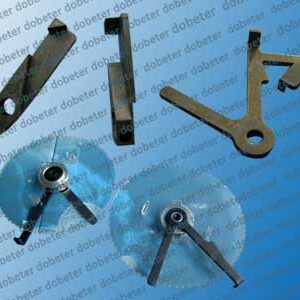

Fuji CP series feeder parts supplied by Dobeter :

The CP series feeders are typically older, pneumatic feeders with a more mechanical design.

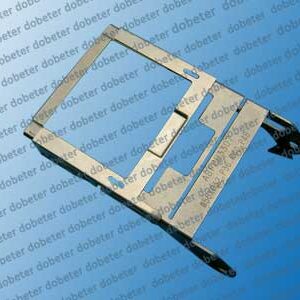

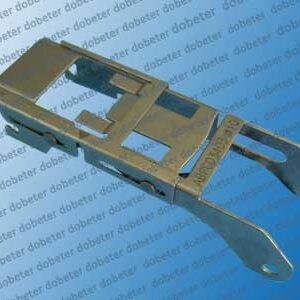

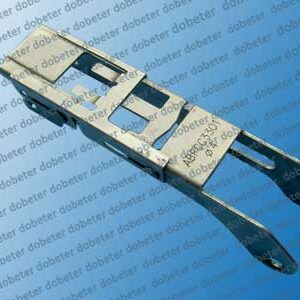

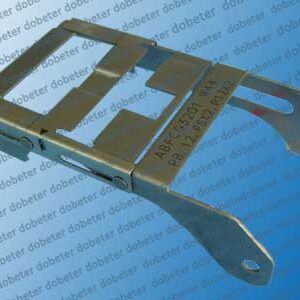

Tape retainers: Available in various widths and pitches (e.g., 8x4mm, 12x4mm) to accommodate different components.
Feeder take-up reel assemblies: Manage the discarded cover tape.
Clamping levers: Secure the feeder to the machine.

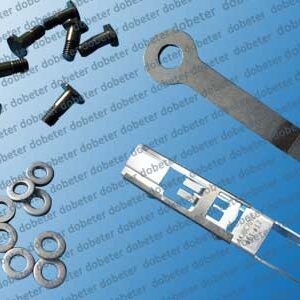

Pins and bushings: Standard mechanical components that are subject to wear.

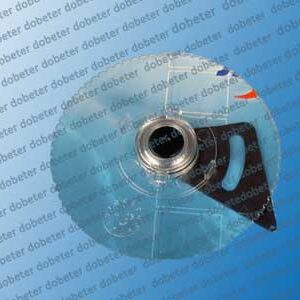

Reel sets: Used for holding the tape reel (e.g., MCB0380 for 8mm tape).
Bearings: For smooth operation.
