SMT Feeder Calibration Jig

Our SMT Feeder Calibration Jig is a specialized tool designed to ensure that SMT feeders are accurately aligned and calibrated, which is critical for achieving high precision in automated component placement. Our SMT Feeder Calibration Jig helps verify that the feeder’s positioning, pitch, and other parameters meet the necessary tolerances, thereby reducing misalignment and improving the overall reliability of the pick-and-place process. Our SMT Feeder Calibration Jig provides a reference framework to check that the feeder’s components—such as the tape, sprockets, and pickup position—are properly aligned. This helps ensure that components are consistently presented for accurate placement. By using the calibration jig, operators can adjust and verify the feeding pitch (the distance between adjacent components on the tape), ensuring that the pick-and-place machine picks up each component in the correct position. Regular calibration using the jig minimizes placement errors, reduces misfeeds, and maintains overall production quality. This is particularly important for high-volume or high-precision manufacturing environments. Our SMT Feeder Calibration jigs are designed to be user-friendly, often including visual guides, measurement scales, and adjustable fixtures to simplify the calibration process, thereby reducing downtime during production.

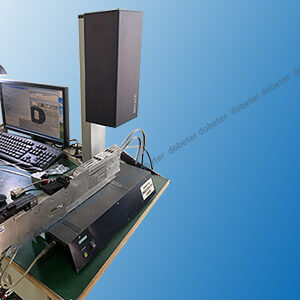

We supply you a variety of SMT Feeder Calibration Jigs to calibrate SMT feeders for SMT pick and place machines such as Yamaha, Assembleon, Juki, Samsung CP SM , Fuji , Panasonic , i-Pulse , Siemen ASM Siplace , Hitachi Sanyo, Mirae, Universal instruments and so on.
By ensuring that feeders are properly calibrated, manufacturers can significantly improve the efficiency and accuracy of their SMT assembly lines, ultimately contributing to higher product quality and reduced production costs.
