Fuji Aimex Nozzles

Dobeter provide a wide range of Fuji AIMEX nozzles, which are used on the Fuji AIMEX series SMT placement machines. These nozzles are critical consumables in Fuji pick-and-place systems, designed for different component sizes and shapes.
Machine Compatibility of Fuji AIMEX nozzles : AIMEX, AIMEX II, AIMEX III, and AIMEX IIIc platforms.
Function of Fuji AIMEX nozzles : Create vacuum suction to pick & place SMD components (chips, ICs, BGAs, connectors, odd-shaped parts).
Construction of Fuji AIMEX nozzles : High-precision, wear-resistant, anti-static materials to prevent damage to sensitive parts.
Mounting: Quick-swap nozzle holders for easy replacement during production.
Common Fuji Nozzle Series for AIMEX
Fuji AIMEX nozzles uses standard nozzle numbers to classify by component size range:
1.0 Nozzle → 0402 (metric 01005) chips
1.3 Nozzle → 0603 chips
1.8 Nozzle → 0805 / small ICs
2.5 Nozzle → 1206 / medium ICs
3.7 Nozzle → SOPs, QFPs, larger chips
5.0 & 7.0 Nozzles → QFPs, connectors, BGAs
Fuji AIMEX nozzles–Special Nozzles → Customized tips for odd-shaped or special components
AIMEX Head Types & Nozzle Use

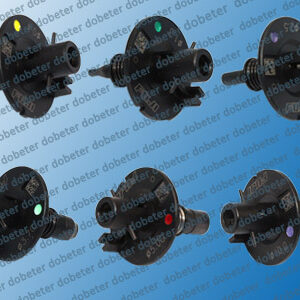

H24S / H24G Heads → High-speed chip placement (use smaller nozzles).
H08M Heads → Medium-speed, flexible placement (use mid-size nozzles).

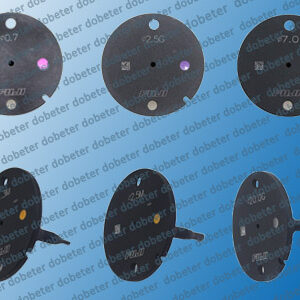

H01 / H02 Heads → For large and odd-form components (use bigger/special nozzles).
Dobeter also supply custom Fuji AIMEX nozzles which offer multi-function and special-shaped nozzles for connectors, sockets, and shield cans.
Dobeter Fuji AIMEX nozzles are more durable for long-term precision.
