Fuji Aimex H08/H12/V12/Dx(R12)-Nozzles

Fuji Aimex H08/H12/V12/Dx(R12)-Nozzles
Fuji AIMEX H08, H12, V12, and DX (R12) nozzles are all part of a compatible nozzle family, primarily designed for medium to high-speed placement of components on AIMEX and NXT series machines. The interchangeability across these different heads is a key feature, which allows for increased production flexibility. Fuji Aimex H08, H12, V12, and Dx (R12) nozzles are specialized SMT nozzles compatible with Fuji AIM, AIMEX, and NXT series pick-and-place machines, available in various sizes and types tailored for different component mounting needs.

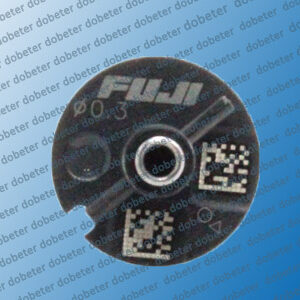

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø0.3 NXT, R07-003-070 AA1AT10
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø0.4 NXT, R07-004-070 AA05600
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø0.6 NXT, wide range S, R07-006WRS-070 2AGKNG021600
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø0.7 NXT, R07-007-070 AA05700
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø0.8 NXT, R07-008-070 2AGKNG009700
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.0 NXT, R07-010-070 AA05800
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.1 NXT, wide range M, R07-011WRM-070 2AGKNG021700

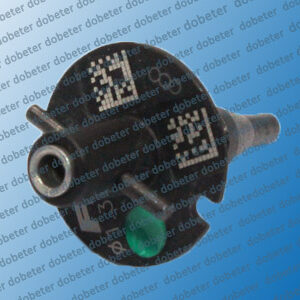

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.3 NXT, R07-013-070 AA20A00
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.3/MELF NXT, R07-013M-070 AA06400

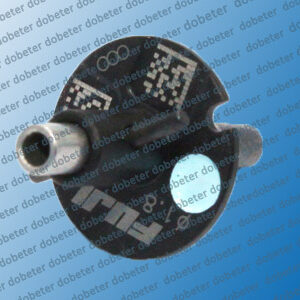

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.8 NXT, R07-018-070 AA20B00

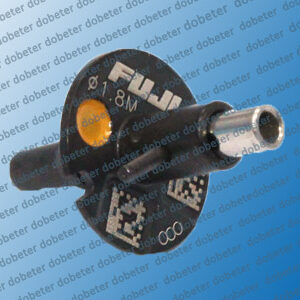

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.8/MELF NXT, R07-018M-070 AA19G00
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø1.8 NXT, wide range L, R07-011WRL-070 2AGKNG021800

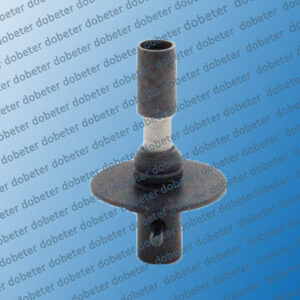

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø2.5 NXT, R07-025-070 AA20C00
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø2.5G NXT with Rubber Pad, R07-025G-070 AA0WT00
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø2.5/MELF NXT, R07-025M-070 AA06500

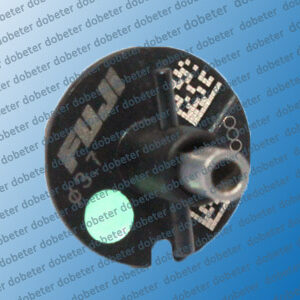

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø3.7 NXT, R07-037-070 AA20D00

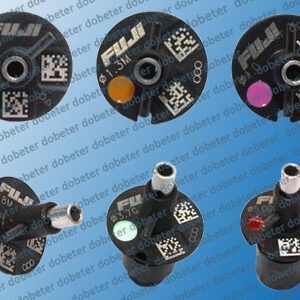

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø3.7G NXT with Rubber Pad, R07-037G-070 AA18C10

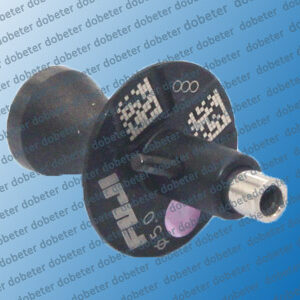

Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø5.0 NXT, R07-050-070 AA20E00
Fuji Aimex Nozzle Head H08/H12/V12/Dx(R12) ø5.0G NXT with Rubber Pad, R07-050G-070 AA06300
