Fuji NXT H04 Nozzles

Fuji NXT H04-Nozzles
Dobeter provide a wide range of Fuji NXT H04 nozzles are used on the H04 medium-speed, general-purpose placement head found on Fuji’s NXT and AIMEX series of surface-mount technology (SMT) machines. The H04 head can handle a wide variety of components, and its nozzles are designed with a low-impact, two-piece construction that minimizes stress on sensitive parts during the placement process.
Key characteristics and types of Dobeter’s Fuji NXT H04 nozzles
Two-piece, low-impact design: Each H04 nozzle consists of a tip and a separate holder. This flexible construction allows the nozzle to absorb the impact of placement, which prevents solder bridging on fine-pitch placements and protects fragile components.
H04 and H04S compatibility: The Fuji NXT has multiple H04-type placement heads. The standard H04 head uses nozzles with a 19 mm disc, while the H04S is compatible with a wider range of nozzles. Your specific head will determine the exact nozzles you can use.
Data matrix codes: Fuji NXT H04-Nozzles, include a data matrix code for automated identification by the SMT machine. This allows the system to verify that the correct nozzle is being used for each component.
Extensive size options: H04 nozzles are available in a broad range of tip sizes to accommodate various component dimensions.

A list of Dobeter’s Fuji NXT H04 nozzles:
FUJI NXT Nozzle Head H04 ø1.0 NXT, R19-010-155 AA06W03
FUJI NXT Nozzle Head H04 ø1.3 NXT, R19-013-155 AA06X04
FUJI NXT Nozzle Head H04 ø1.3ML/MELF NXT, R19-013M-155 AA22Y00
FUJI NXT Nozzle Head H04 ø1.8 NXT, R19-018-155 AA06Y04
FUJI NXT Nozzle Head H04 ø1.8ML/MELF NXT, R19-018M-155 AA22Z00
FUJI NXT Nozzle Head H04 ø2.5 NXT, R19-025-155 AA06Z05
FUJI NXT Nozzle Head H04 ø2.5G NXT with Rubber Pad, R19-025G-155 AA07F02
FUJI NXT Nozzle Head H04 ø2.5ML/MELF NXT, R19-025M-155 AA2KE00
FUJI NXT Nozzle Head H04 ø3.7 NXT, R19-037-155 AA07A05
FUJI NXT Nozzle Head H04 ø3.7G NXT with Rubber Pad, R19-037G-155 AA07G03
FUJI NXT Nozzle Head H04 ø5.0 NXT, R19-050-155 AA07B04
FUJI NXT Nozzle Head H04 ø5.0G NXT with Rubber Pad, R19-050G-155 AA07H03
FUJI NXT Nozzle Head H04 ø7.0 NXT, R19-070-155 AA07C04

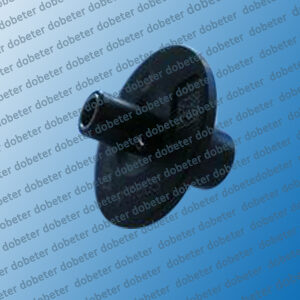

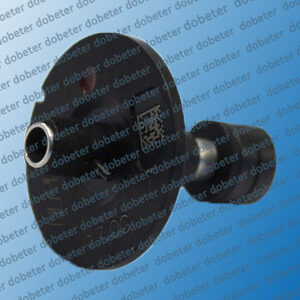

FUJI NXT Nozzle Head H04 ø7.0G NXT with Rubber Pad, R19-070G-155 AA07K04
FUJI NXT Nozzle Head H04 ø10.0 NXT, R19-x100x-155 AA07D03
FUJI NXT Nozzle Head H04 ø10.0G NXT with Rubber Pad, R19-100G-155 AA07L04

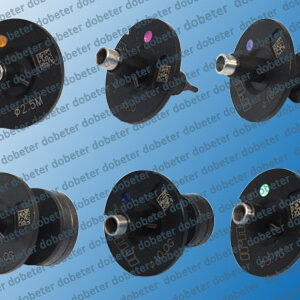

FUJI NXT Nozzle Head H04 ø15.0 NXT, R19-150-155 AA07E03
FUJI NXT Nozzle Head H04 ø15.0G NXT with Rubber Pad, R19-150G-155 AA07M04
