<h3>Hanwha CP45 Nozzle</h3>
Dobeter’s Hanwha CP45 nozzles are precision SMT pick-and-place machine components designed for accurate component pickup and placement, available in various sizes and types suited for different electronic component dimensions and shapes.
The Hanwha CP45 nozzle series includes various nozzles distinguished by part numbers and sizes, primarily identified by their outer diameter (OD) and inner diameter (ID), which relate to the size range of components they can handle. Several nozzles come with diamond tips that improve placement precision.
Dobeter’s Hanwha CP45 nozzle variants include:

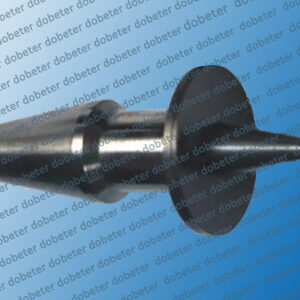

Samsung TN03 Nozzle J7055180F : 0.8 mm OD / 0.28 mm ID, ideal for small precision components

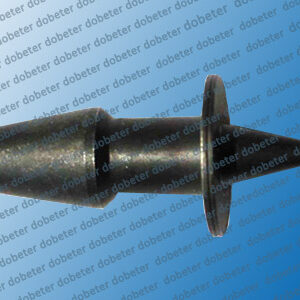

Samsung TN04 Nozzle J7055246A : 0.75 mm OD / 0.38 mm ID

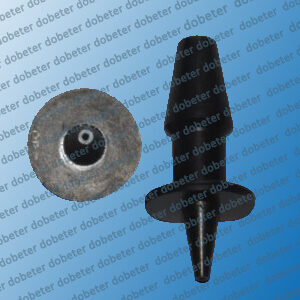

Samsung TN65 Nozzle J7055267A : 1.2 mm OD / 0.65 mm ID

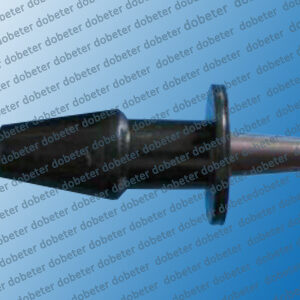

Samsung TN14 Nozzle J7055131C : 2.2 mm OD / 1.4 mm ID

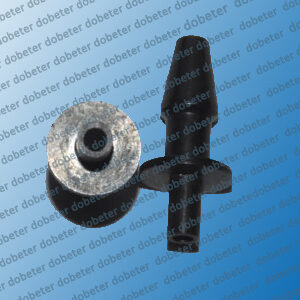

Samsung TN22 Nozzle J7055132C : 3.6 mm OD / 2.2 mm ID
Samsung TN40 Nozzle J7055133C : 6.2 mm OD / 4.0 mm ID
Samsung TN75 Nozzle J7055135C : 9.0 mm OD / 7.5 mm ID
Samsung TN110 Nozzle J7055137C : 12.7 mm OD / 11.0 mm ID

Hanwha CP45 nozzles are widely used in SMT pick-and-place machines for positioning electronic parts such as chips, capacitors, resistors, ICs, and connectors with high accuracy. The diameter specifications ensure the nozzle fits the component size to create proper suction during pickup without damaging the parts. Ceramic-tipped nozzles enhance grip and placement accuracy, especially for fine-pitch components.
Selection Advice
– Choose nozzles whose inner diameter fits the minimum dimension of the component to be placed.
– Use diamond tip nozzles for delicate or fine-pitch components needing high precision.
– For larger components like QFP or PLCC packages, larger diameter nozzles such as TN110 or CN110 are recommended.
In summary, Dobeter’s Hanwha CP45 nozzle series is versatile and essential for modern SMT production lines, providing precise placement solutions for a broad range of electronic component sizes and shapes.
