Hanwha HM520 Nozzle

<h3>Hanwha HM520 Nozzle</h3>
Dobeter’s Hanwha HM520 Nozzle works on Hanwha (formerly Samsung) HM520 pick-and-place machine, which uses HN-series nozzles for surface-mount component placement. The nozzles are chosen based on the size and shape of the components being placed.
HN-series nozzles
These nozzles are used for standard, high-speed component placement.
HN020

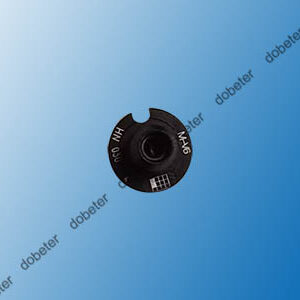

HN030

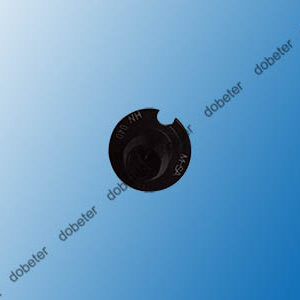

HN040

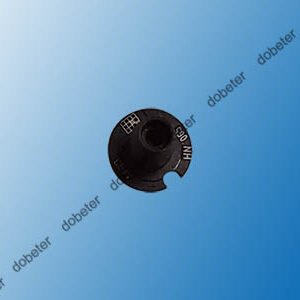

HN065

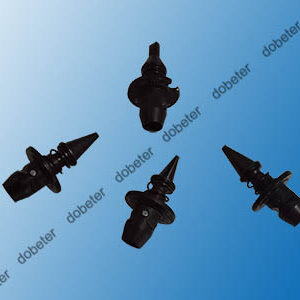

HN080

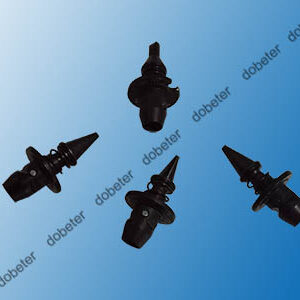

HN140

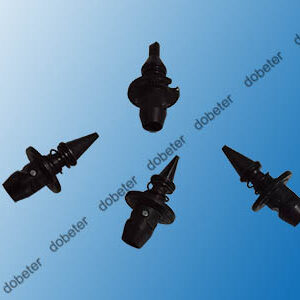

HNL20
HN220
How to select the correct Dobeter’s Hanwha HM520 Nozzle
To ensure reliable and accurate component placement, consider these factors when choosing a nozzle:
Component size: The nozzle’s tip size should be slightly smaller than the component’s body to ensure it can create proper vacuum pressure and avoid picking up adjacent components.
Component shape: Standard nozzles have cylindrical openings, but specialized nozzles are available for non-standard or odd-shaped components like connectors and large ICs.
Nozzle change: The HM520 features an Automatic Nozzle Change (ANC) function that automatically re-arranges and replaces nozzles, making it easy to manage a variety of component sizes.
