Juki Nozzle KE-2050 2060 2050R KE2055R 2060R 2070 2080 2080R 3010 3020 3020R 3020V 3020VR FX-1

Juki Nozzle for KE-2050 2060 2050R KE2055R 2060R 2070 2080 2080R 3010 3020 3020R 3020V 3020VR FX-1 pick and place machine features a multi-nozzle laser head system designed for high-speed, precise placement of small components, with nozzle models like the JUKI Nozzle 511 KE2050 offering durable, precision-engineered spare parts tailored to modern SMT production demands.
The Juki Nozzle sizes for KE-2050 2060 2050R KE2055R 2060R 2070 2080 2080R 3010 3020 3020R 3020V 3020VR FX-1 covers a range suitable for chip components from 0603 (0201 imperial) up to 20mm square parts, or alternatively components sized up to 26.5×11mm including 0402 (01005) as a factory option. The Juki Nozzle sizes for KE-2050 2060 2050R KE2055R 2060R 2070 2080 2080R 3010 3020 3020R 3020V 3020VR FX-1 system works in tandem with the laser recognition system to maintain placement accuracy of ±0.05mm, ensuring precise component positioning during high-speed operations.
These nozzles contribute significantly to machine reliability, minimizing downtime and ensuring smooth pick-and-place operations.
Dobeter’s JUKI nozzle system for the KE-2050 is designed for precision, durability, and high-speed SMT production, with a typical multi-nozzle (4 nozzles) laser head setup that supports a wide component size range while maintaining precise placement accuracy. This makes the nozzle a critical component for enhancing the overall throughput and reliability of the KE-2050 pick and place machine.

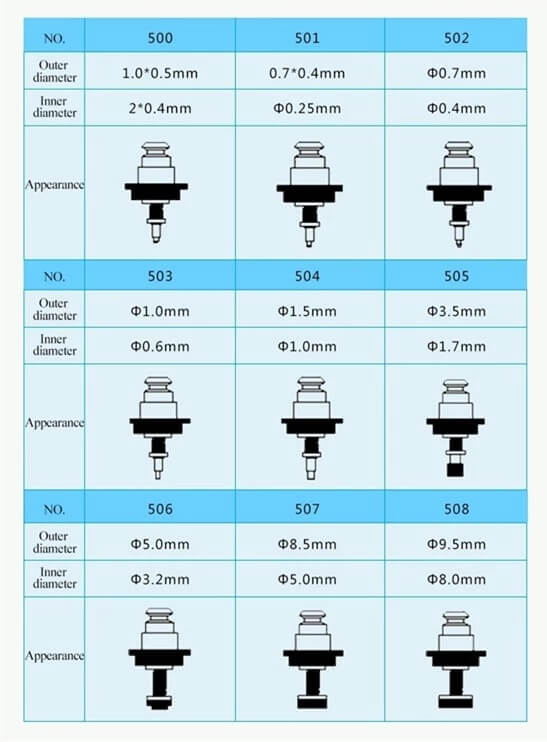

E36087290A0/40011046 JUKI NOZZLE 500 ASSY Ø1.0 X 0.5
E36007290A0/40001339 JUKI NOZZLE 501 ASSY Ø 0.7×0.4
E36017290A0/40001340 JUKI NOZZLE 502 ASSY Ø 0.7×0.4
E36027290A0/40001341 JUKI NOZZLE 503 ASSY Ø1.0×0.6
E36037290A0/40001342 JUKI NOZZLE 504 ASSY Ø1.5/1.0
E36047290A0/40001343 JUKI NOZZLE 505 ASSY 3.5/1.7
E36057290A0/40001344 JUKI NOZZLE 506 ASSY Ø5.0/3.2
E36067290A0/40001345 JUKI NOZZLE 507 ASSY Ø8.5/5.0
E36077290A0/40001346 JUKI NOZZLE 508 ASSY Ø8.5 /5.0
E36077290A0/40025165 JUKI NOZZLE 509 ASSY Ø0.1/0.4
E36157290A0 JUKI NOZZLE 510 ASSY Ø1.5/0.6
E36167290A0 JUKI NOZZLE 511 ASSY Ø2.0/1.2
