Sanyo Nozzles

Dobeter supply a wide range of Sanyo nozzles, these Sanyo nozzles are high-precision SMT and dispensing nozzles used in Sanyo pick-and-place and dispensing machines for accurate placement and dispensing of surface-mount electronic components. For SMT machines that place components on circuit boards, Sanyo nozzles are used to accurately pick up and position tiny electronic parts. Many of these nozzles are no longer manufactured directly by Sanyo and are instead sold by third-party suppliers who produce compatible parts.
Types and Series
– Sanyo TIM5000 Nozzles: Designed specifically for the TIM5000 pick-and-place machines, these nozzles ensure precise component placement on PCBs. Models include MA04, MA05, MA06, MA03, MV03, MF02, among others, optimized for various component sizes and mounting requirements].

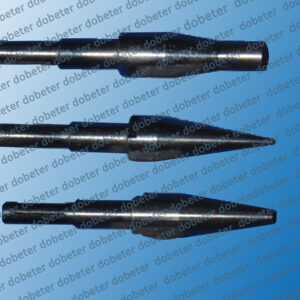

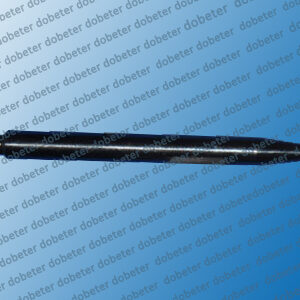

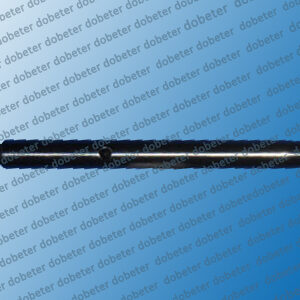

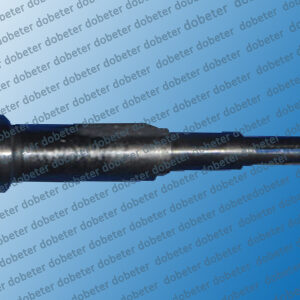

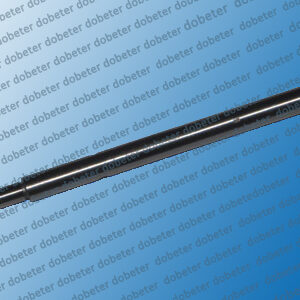

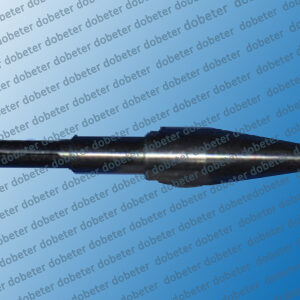

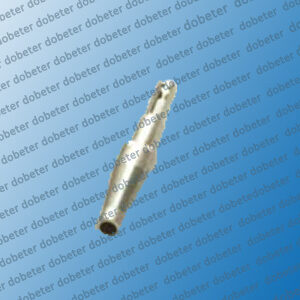

– Sanyo TCM Series Nozzles: These include nozzles compatible with TCM 3000, TCM-V1000, TCM-41, and TCM-60 machines. They come with different diameters (e.g., Ø0.6/Ø0.4, Ø1.3/Ø0.9) and specialized designs for various parts like MELF components .
– Sanyo TDM Dispensing Nozzles: These nozzles serve dispensing applications, such as TDM 2-65, TDM 1000, and TDM 3000 series, featuring single or dual dispensing outlets with various orifice sizes (e.g., Ø0.7 / Ø0.4 and Ø0.8 / Ø0.5) and pressure specifications tailored for different adhesives or solder pastes.
Features and Applications
Sanyo nozzles are engineered for high accuracy, durability, and compatibility with specific Sanyo SMT equipment. They are widely used in electronics manufacturing for placing small surface-mount devices (SMDs), improving placement speed and reducing component misalignment. Dispensing nozzles regulate precise fluid application for solder paste or adhesives in PCB assembly .
Summary
Dobeter’s Sanyo nozzles are critical components in SMT assembly lines, offering precision and reliability for both placement and dispensing operations. Their compatibility across multiple Sanyo machine models and the availability of various sizes and configurations make them versatile and essential in modern electronics manufacturing.
If you need specific nozzle types or part numbers for your equipment, Dobeter provide detailed catalogs, custom options, and global shipping.
