Assembleon Parts

Dobeter supply a variety of Assembleon parts include a wide range of original and compatible replacement components such as nozzles, feeders, valves, sensors, motors, boards, and tools for various Assembleon pick and place SMT machines, available for purchase with flexible payment options and low minimum order quantities.
Types of Assembleon Parts Available Dobeter can supply :
– Nozzles: Essential for pick-and-place operations, compatible with models like Topaz XII, Emerald XII, Sapphire, MG series, and more.
– Feeders: Including ZS, SS, CL, FV types and tape feeders in various widths (8mm to 88mm), with components such as guide blocks, gears, screws, and motors.
– Valves and Sensors: Air valves, ejectors, valve selectors, sensors for stop functions, filters, and O-rings are stocked to maintain air and operational systems.
– Motors and Drive Assemblies: Motors, servo boards, driver boards, and shaft head assemblies for machine mobility and precision movements.
– Boards and Electronics: Vision boards, LED driver boards, I/O head units, servo boards, power boards—either used or new OEM parts for key machine controls.
– Tools and Accessories: Including grease, cable ducts, camera and lighting components, gas springs, and other mechanical parts needed for maintenance and repair.

Compatible Machine Models of Assembleon parts supplied by Dobeter
Parts are supplied for a broad range of Assembleon SMT machines such as:
– Topaz XII and XI
– Emerald XII
– Sapphire
– MG-1, MG-2, MG-3, MG-8, MG-1R, MG-8R
– MC series: MC-1, MC-2, MC-5, MC-8, MC-12
– AX301, AX501 and AX201 series

Dobeter offer technical support and consultation to help customers identify the correct parts or source customized components suited to unique requirements, Dobeter’s broad availability and extensive selection of Assembleon spare parts ensure that SMT assembly lines using these machines can maintain high uptime with genuine or high-quality aftermarket components, tailored payment options, and efficient logistics support.
The detailed parts lists and availability information from Dobeter reflect reliable and immediate sourcing options for operating and maintaining Assembleon SMT machines.

Dobeter supply a variety of Assembleon Parts , covering
Assembleon Parts– Nozzles, nozzle shafts
Assembleon nozzle 211A 9498 396 00641
Assembleon nozzle 212A 9498 396 00642
Assembleon nozzle 213A 9498 396 00643
Assembleon nozzle 213A 9498 396
Assembleon nozzle 71A 9498-396-00344
Assembleon nozzle 71A 9498 396 00344
Assembleon nozzle 72A 9498-396-00345
Assembleon nozzle 72A 9498 396 00345
Assembleon nozzle 72i Assembleon nozzle 72i
Assembleon nozzle 72i STD 9466 029 62481
Assembleon nozzle 72 5322 360 10494
Assembleon nozzle 73A 9965-000-02777
Assembleon nozzle 221F 9498-396-01221
Assembleon nozzle 221F 9498 396 01221
Assembleon nozzle 222F 9498-396-01222
Assembleon nozzle 222F 9498 396 01222
Assembleon nozzle 223F 9498-396-01223
Assembleon nozzle 223F 9498 396 01223
Assembleon nozzle 226F 9498-396-01227
Assembleon nozzle 226F 9498 396 01227
Assembleon nozzle 229F 9498-396-01228
Assembleon nozzle 229F 9498 396 01228

Assembleon Parts– Feeder types (CL, ZS, SS, FV), including 8×2, 8×4, 16 mm, 32 mm, 44 mm, 56 mm variants
Assembleon 8mm 0402 CL Tapefeeder 9498 396 00340 PA2903 78
Assembleon 8mm Standard CL Tapefeeder 9498 396 00341 PA2903 79 2
Assembleon 12mm CL Tapefeeder 9498 396 00342 PA2903 88
Assembleon 16mm CL Tapefeeder 9498 396 00338 PA2903 27
Assembleon 24mm CL Tapefeeder 9965 000 15825 PA2903 38
Assembleon 32mm CL Tapefeeder 9965 000 15826 PA 2903-48
Assembleon 32mm CL Tapefeeder 9965 000 15826 PA 2903-48
Assembleon 44mm CL Tapefeeder 9965 000 15827 PA 2903-58
Assembleon 56mm CL Tapefeeder 9965 000 15828 PA 2903-68
Assembleon 56mm CL Tapefeeder 9965 000 15828 PA 2903-68

Assembleon Parts– Valves (e.g., part numbers KM1-M7163-20X, KV8-M7162-10), ejector units, sensors, belts, cylinders, boards, motors, tools, grease, filters, and more
5322 360 10209 Valve Air-Select
5322 464 10377 Manifold Inner Vacuum Ejector Valve base
5322 281 20198 Valve
5322 693 11367 Ejector single
9965 000 09042 Topaz Xii Ejector Vacuum Valve
9965 000 03806 BLOW OFF Valve
5322 360 10208 Valve UP/DOWN Select
9965 000 03807 Valve
9965 000 03808 Valve
5322 360 10327 Valve Feederbar
5322 360 10327 Valve Feederbar
5322 132 00056 Sensor 1-2 Sub Stop
9965 000 10927 sensor

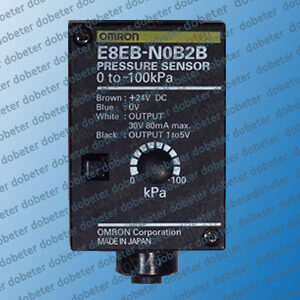

5322 216 04673 VAC sensor Board Assy
5322 360 20081 Filter
KLW-M8527-00X Filter
5322 480 10106 Filter
KHY-M7154-C0X Bit Filter
5322 530 10474 O-ring, plastic caps
5322 530 51347 Packing
5322 530 51347 Packing
5322 532 12546 Packing, pistons
5322 532 12546 Packing pistons
5322 532 12545 Packing
5322 532 12546 Packing
5322 358 10174 Belt head
5322 358 10174 Belt head
5322 358 10211 Belt Conveyor
5322 358 10146 Belt
9965 000 09055 Belt head
9965 000 09044 Belt 1 R Motor
9498 396 00678 Belt conveyor
5322 360 40523 Cylinder Main Stopper
5322 360 40528 Cylinder Orion Locate
5322 360 40525 Cylinder Edge Clamp
5322 360 40471 Cylinder Sub Stop
5322 360 10466 Cylinder
9498 396 01477 I/O Board Head Assy
5322 216 04628 Head I/O ATS
5322 216 04692 Vision Board
9498 396 00591 Vision Board Assy
9498 396 02611 Vision Board
5322 361 11188 AC Servo motor
9965 000 09020 AC Servo motor
9965 000 09016 AC Servo motor
4035 114 00829 Component, 0402 Ceramic Precision
