Hanwha Label Feeder
Dobeter’s Hanwha label feeders are specialized devices designed to automate the placement of labels—such as barcodes, QR codes, and serial numbers—onto PCBs during the SMT assembly process. These Hanwha label feeders integrate seamlessly with Hanwha pick-and-place machines, enhancing traceability and production efficiency. Dobeter’s Hanwha label feeders are capable of peeling and presenting multiple labels simultaneously, increasing throughput and productivity, available in standard widths of 50mm, 85mm, and 100mm, with customization options to suit specific label sizes and applications, Dobeter’s Hanwha label feeder offers high feeding accuracy, with a feed rate up to 95 mm/sec and precision of ±0.2 mm, supports a wide range of adhesive-backed materials, including labels, distance pads, thermal conduction pads, Kapton dots, special masks, and metal sheets thicker than 1mm. Dobeter’s Hanwha label feeder fits onto existing placement machines and presents the labels to the pick-and-place machine as if they were just another component, requiring minimal programming or training.
If you require assistance in selecting the appropriate label feeder model for your specific Hanwha SMT machine or need further information on customization options, feel free to ask!
Part number: DBE-LF-HH-SM
Applied to : CP60, CP50, CP45,CP40,SM451, SM421, SM411, SM320, CP45Neo and so on.
Hanwha label feeder into Hanwha SMT machine:

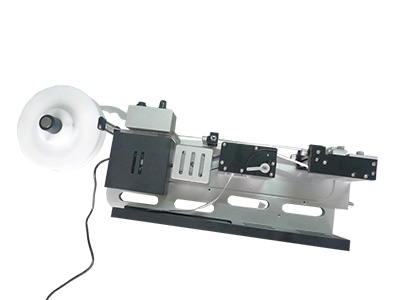

Hanwha Label Feeder 2
Part number: DBE-LF-HH-CP
Applied to : CP45,CP40,CP20 and so on.
Hanwha label feeder into Hanwha SMT CP45,CP40,CP20 machine:
We have three Liner(web) width for Hanwha label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.
Specs :
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 50mm
85mm 100mm customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
We also supply you Cutomized nozzle for Hanwha label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :
