Juki Label Feeder
Dobeter’s Juki label feeders are specialized devices designed to automate the placement of labels—such as barcodes, QR codes, and serial numbers—onto PCBs during the SMT assembly process. These Juki label feeders integrate seamlessly with Juki pick-and-place machines, enhancing traceability and production efficiency. Dobeter’s Juki label feeders are capable of peeling and presenting multiple labels simultaneously, increasing throughput and productivity, available in standard widths of 50mm, 85mm, and 100mm, with customization options to suit specific label sizes and applications, Dobeter’s Juki label feeder offers high feeding accuracy, with a feed rate up to 95 mm/sec and precision of ±0.2 mm. Dobeter’s Juki label feeders can peel a wide range of adhesive-backed materials, including labels, distance pads, thermal conduction pads, Kapton dots, special masks, and metal sheets thicker than 1mm, also they can fit onto existing placement machines and presents the labels to the pick-and-place machine as if they were just another component, requiring minimal programming or training.
If you require assistance in selecting the appropriate label feeder model for your specific Juki SMT machine or need further information on customization options, feel free to ask!
Juki Label Feeder 1
Part Number DBE-LF-JK-NM
Applied to : those Juki SMT machines KE710, KE720, KE730, KE750,KE760,KE2000/ 2010/ 2020/ 2030/ 2040/ 2050/ 2060/ 2070/ 2080/ 3010/ 3020/ 1070/ 1080 FX-1/ FX-2/ FX-3 such as Juki, Juki X, Juki XII and so on.

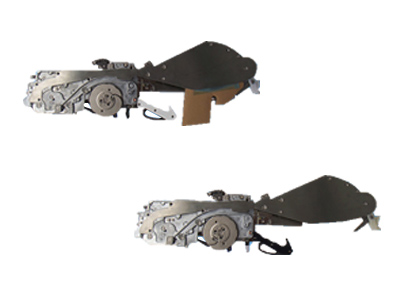

These machines are using this kind of pneumatic series feeder :
Juki label feeder into Juki SMT machine:
Juki Label Feeder 2
Part Number DBE-LF-JK-EF
Applied to : those Juki SMT machines RX-6 , RX-7, FX-3RA, KE-3010A, KE-3020VA / KE-3020VRA and so on.
These machines are using this kind of EF series feeder :
Juki Label Feeder 3
Part Number DBE-LF-JK-RF
Applied to : those Juki SMT machines RS-1R, RX-6, RX-7, FX-3RA, KE-3010A, KE-3020VA/KE-3020VRA and so on.
These machines are using this kind of RF series feeder :
We have three kinds of Liner(web) width for Juki label feeder : 50mm, 85mm and 100mm, also we can make customized liner width as your request, our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.
Specs :
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 50mm
85mm 100mm customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
We also supply you cutomized nozzles for Juki label feeder , send us your datasheet of labels or samples we can design and manufacture the special nozzles for you :
