Yamaha Nozzle 61F KGR-M71N1-A0

Applied machines : YAMAHA YV88X , YV88XG.

Part number : KGA-M71N1-A0X

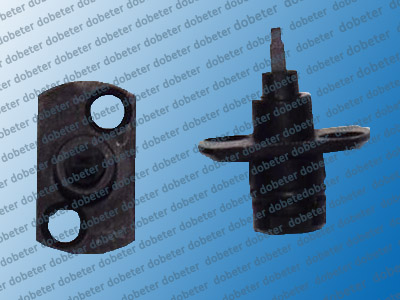

Description : Yamaha Nozzle 61F ASSY

Yamaha Nozzle 61F with part number KGR-M71N1-A0, is applied to Yamaha SMT pick and place machines such as YAMAHA YV88X , YV88XG. It is commonly used to pick and place 0201 /0603 and 0402 / 1005 components. Its tip size is 0.7×0.8 , with X shape hole, made of ceramic.

No. Part No. Part Name Q’ty Remarks Date Revised No.
1 KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A
2 KV7-M7713-00X O-RING 5 SS-015 Reserve4
2-1 90200-02J015 O-RING 5 M1X0094
3 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A
4 KV7-M7730-00X NOZZLE 63A 2 Type 63A
5 KV7-M7740-A0X NOZZLE 64A ASSY. 2 Type 64A
6 KV7-M7741-00X BODY. NOZZLE 64A 1
7 KGB-M7742-00X O-RING 5 KSP0004
7-1 90990-17J013 O-RING 5 M1X0134
8 KV7-M7750-A0X NOZZLE 65A ASSY. 2 Type 65A
9 KV7-M7751-00X BODY. NOZZLE 65A 1
10 KGA-M7752-00X O-RING 5 KSP0009
10-1 90990-17J015 O-RING 5 M1X0134
11 KV7-M7760-00X NOZZLE 66A 2 Type 66A
12 KV7-M77GX-A0X CIRCLE NOZZLE 6A 2 CIRCLE NOZZLE
12-1 KV7-M7790-A0X NOZZLE 69A ASSY. 2 M340108

1 KGA-M71N1-A0X NOZZLE 61F ASSY. 2 TYPE 61F
2 KGA-M71N1-B0X NOZZLE 61F SUB ASSY. 1
3 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4
4 KV7-M71S2-00X O-RING 5 SS-038.Reserve4
4-1 90200-02J038 O-RING 5 2001.11 M1X0060
5 KGA-M71N2-A0X NOZZLE 62F ASSY. 2 TYPE 62F
6 KGA-M71N2-B0X NOZZLE 62F SUB ASSY. 1
7 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4
8 KV7-M71S2-00X O-RING 5 SS-038.Reserve4
8-1 90200-02J038 O-RING 5 2001.11 M1X0060
9 KV7-M71N3-A1 NOZZLE 63F ASSY. 2 Type 63F
10 KV7-M71N3-B1X NOZZLE 63F SUB ASSY. 1
11 KV7-M71M6-01X SCREW, NOZZLE 6 Reserve4
12 KV7-M71S2-00X O-RING 5 SS-038.Reserve4
12-1 90200-02J038 O-RING 5 2001.11 M1X0060
13 KV7-M71N4-A0X NOZZLE 64F ASSY. 2 TYPE 64F
14 KV7-M71N4-00X BODY, NOZZLE 4 1
15 KGB-M7742-00X O-RING 5 Reserve4 (KSP0004)
15-1 90990-17J013 O-RING 5 2001.11 M1X0060
16 KV7-M71S2-00X O-RING 5 SS-038.Reserve4
16-1 90200-02J038 O-RING 5 2001.11 M1X0060
17 92A08-03305 SET SCREW M3X5 3 Reserve2
18 KV7-M71N5-A0X NOZZLE 65F ASSY. 2 TYPE 65F
19 KV7-M71N5-00X BODY, NOZZLE 5 1
20 KGA-M8752-00X O-RING 5 Reserve4 (KSP0007)
20-1 90990-17J014 O-RING 5 2001.11 M1X0060
21 KV7-M71S2-00X O-RING 5 SS-038.Reserve4
21-1 90200-02J038 O-RING 5 2001.11 M1X0060
22 92A08-03305 SET SCREW M3X5 3 Reserve2
23 KV7-M71N6-A0X NOZZLE 66F ASSY. 2
24 KV7-M71N6-B0X NOZZLE 66F SUB ASSY. 1
25 KV7-M71S4-00X O-RING 5 SS-065.Reserve4
25-1 90200-02J065 O-RING 5 2001.11 M1X0060
26 92A08-03303 SET SCREW M3X3 3
27 KV7-M71M0-A0X NOZZLE HOLDER ASSY. 2
28 KV7-M71M0-00X HOLDER NOZZLE SP 1
29 KV7-M71S4-00X O-RING 5 SS-065.Reserve4
29-1 90200-02J065 O-RING 5 2001.11 M1X0060
30 KG7-M7137-A0X LEAF SPRING 4
31 KG7-M7169-00X SCREW 4 Reserve2
32 KG7-M7170-00X WASHER 4 Reserve2
32-1 90990-28J002 WASHER 4 2001.11 M1X0060
33 92A08-03303 SET SCREW M3X3 3 Reserve2
34 KV7-M87GF-A0X CIRCLE NOZZLE 6F 2
34-1 KV7-M71N9-A0X NOZZLE 69F ASSY. 2 2002.9 M280135
